  ADHESIVES and JOINT FILLERS ADHESIVE and GROUTING MORTAR FUGAFiX EPOKSi®

PRODUCTS

FUGAFiX EPOKSi®Epoxy-Based High Strength Antibacterial Ceramic Adhesive and Joint Filler Resistant To Chemicals

APPLICATION FIELD

  • Used for affixing of materials such as ceramic, marble, granite, anthracite ceramic, glass mosaic and glass bricks in interior and exterior areas and filling of their joints.
  • Used in all kinds of food production facilities and in meat/fish industry, chemical industry applications such as pharmaceutics, paint, leather production, etc., in hospitals, healthcare facilities and any kind of hygienic environment,
  • In areas such as swimming pools, hot springs, saunas, etc., in waste water facilities and treatment plants,
  • In areas exposed to heavy pedestrian traffic.

REQUIREMENTS

  • Anti-bacterial.
  • Applied easily.
  • Resistant to dirt, easy to clean. May be cleaned with water.
  • Has a high mechanical strength.
  • Resistant to chemicals, acids, alkalis, oils, food waste water, domestic and chemical waste water.
  • Suitable for joint widths from 2 mm to 10 mm.
  • Resistant to freezing - thawing.
  • Can be used in contact with drinking water.

TECHNICAL VALUES

Specifications of the Joint Filler:

Compressive Strength, N/mm² (EN 12808-3)

≥ 45

Bending Strength, N/mm² (EN 12808-3)

≥ 30

Wear Resistance, mm³ (EN 12808-2)

≤ 250

Contraction, mm/m (EN 12808-4)

 ≤ 1,5

Water Absorption, 240 minutes later, g (EN 12808-5)

< 0,1


Specifications of the Ceramic Adhesive:

Shear Tensile Strength (TS EN 12003);

Initial, N/mm²

 ≥ 2

After Dipping in the Water, N/mm²

≥ 2

After Thermal Shock, N/mm²

≥ 2

Tensile Strength After the Period for Keeping Uncovered (minimum 20 minutes), N/mm²

≥ 0,5



Common Specifications:

Temperature Strength, ºC

-20 / +80

Colour

Grey

Application Time, minutes

~ 45

Period for Keeping Uncovered, minutes

~ 20

Period For Opening to Pedestrian Traffic, days

7

Floor Temperature, ºC

-10 /+25



MSDS - Safety Data Sheet Ürünün Güvenlik Bilgi Formunu görüntülemek ve indirmek için tıklayınız. TDS - Technical Information Form Ürününün Teknik Bilgi Formunu görüntülemek ve indirmek için tıklayınız.

APPLICATION

SURFACE PREPARATION

  • Surface strength shall be achieved before application; dust, chipping, construction-cement residues shall be scraped off and cleaned with brush and any adherence reducing agents shall be removed.

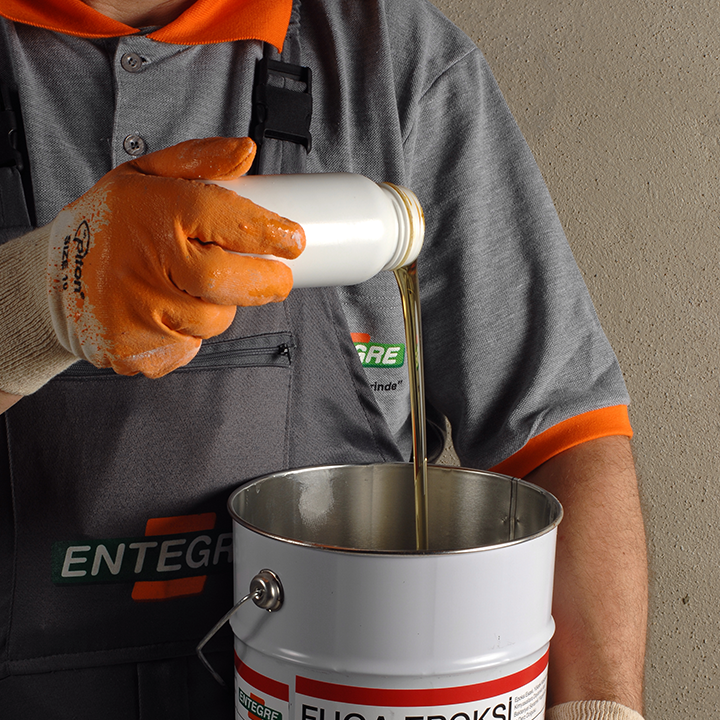

PREPARATION of the MORTAR

  • Packed with appropriate quantities consisting of 2 components.
  • If the product in the package shall be used partially, it shall be mixed with a ratio of Resin A / hardener B = 100/4 (by weight).

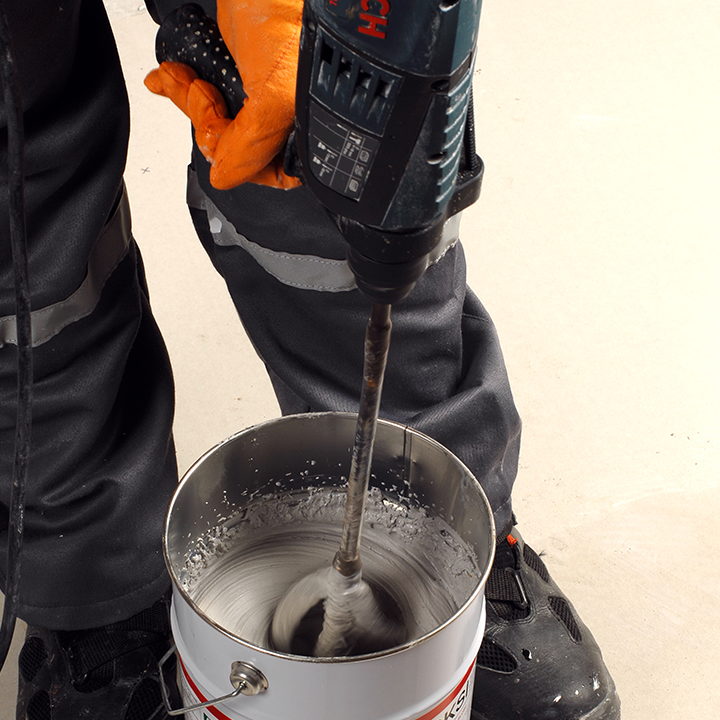

  • Two components shall be mixed for 3 minutes with mixer drill with a speed of 400 - 600 rpm until a homogeneous mixture is achieved.

KARIŞIM ORANLARI

  • FUGAFIX EPOKSİ® Component A, 5 kg Epoxy resin
  • FUGAFIX EPOKSİ® Component B, 0.2 kg Epoxy hardener

APPLICATION for CERAMIC ADHESIVE

  • FUGAFIX EPOKSI® is used as the cement-based ceramic adhesives.

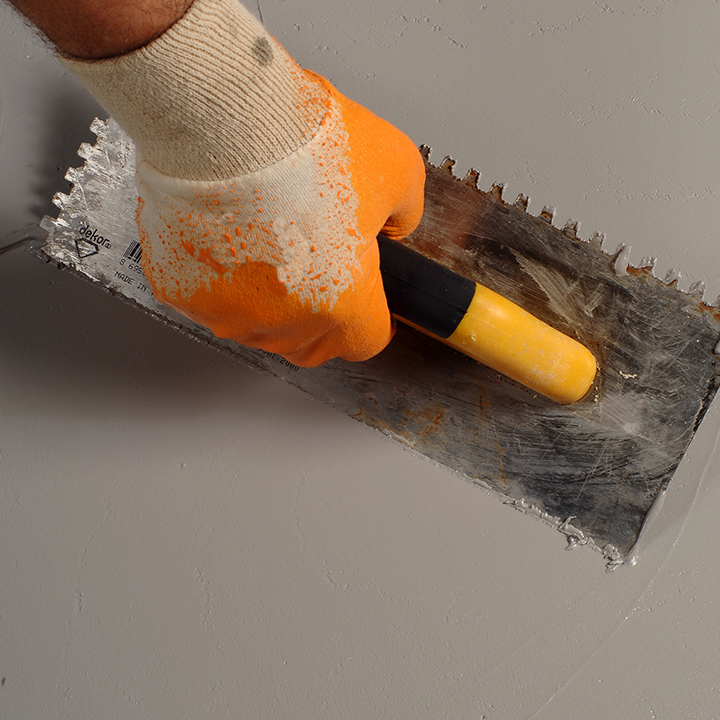

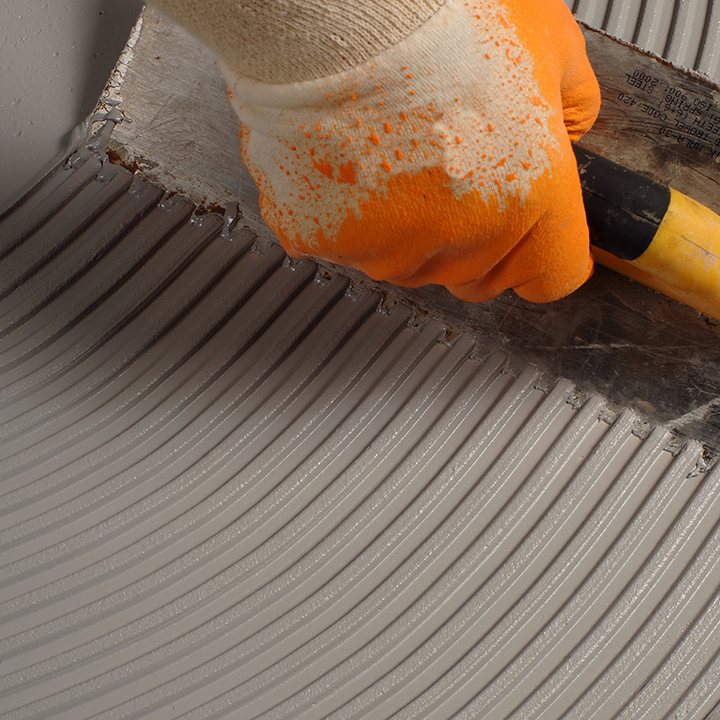

  • Ceramics are affixed by spreading the material with a suitable comb trowel after making the mixture.
  • For critical surfaces and areas where heavy loads shall be present, material shall be applied as a thin layer just as applying a putty with the flat side of the trowel on the area to be affixed, then the material shall be spread by the comb trowel and ceramics shall be affixed after putting epoxy mortar on it.

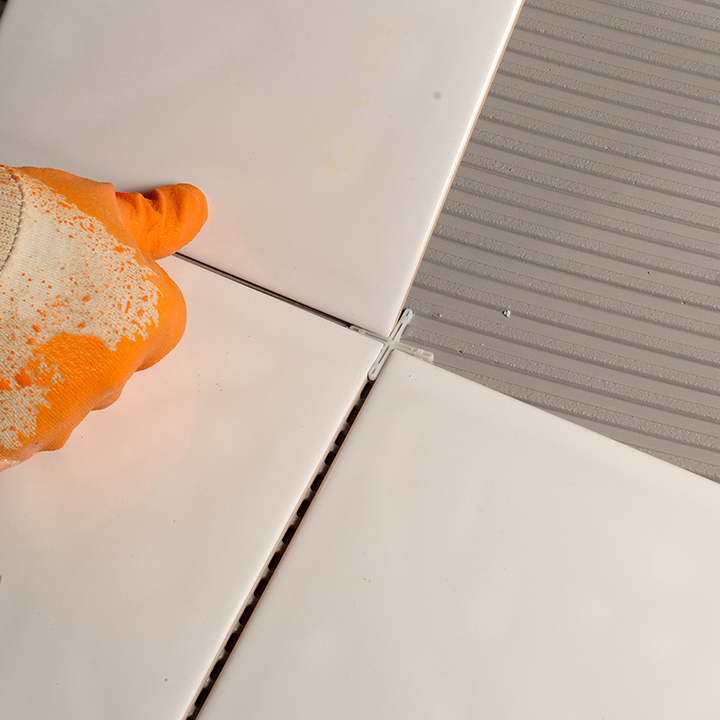

  • After affixing the material with the comb trowel, the ceramics shall be affixed rapidly; and no ceramics shall be affixed on a material that has started to cure.

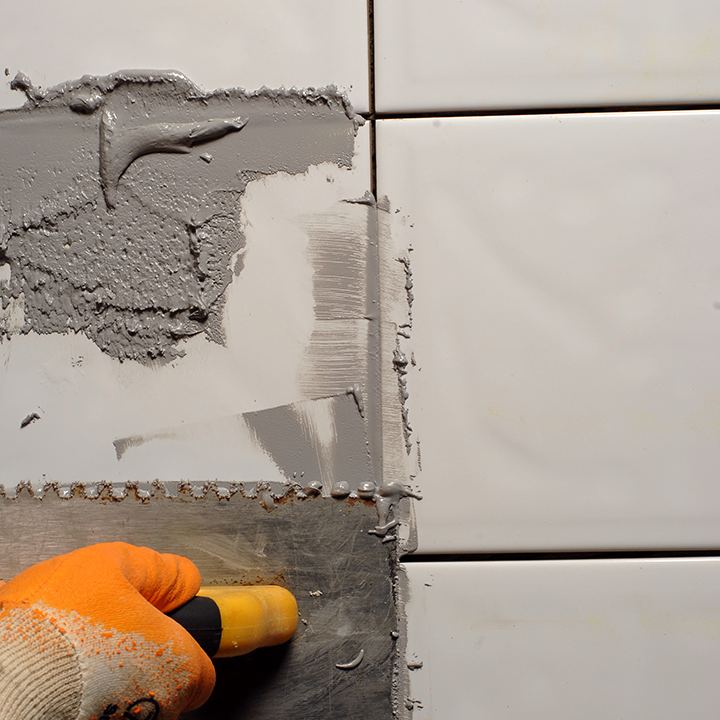

APPLICATION for JOINT FILLER

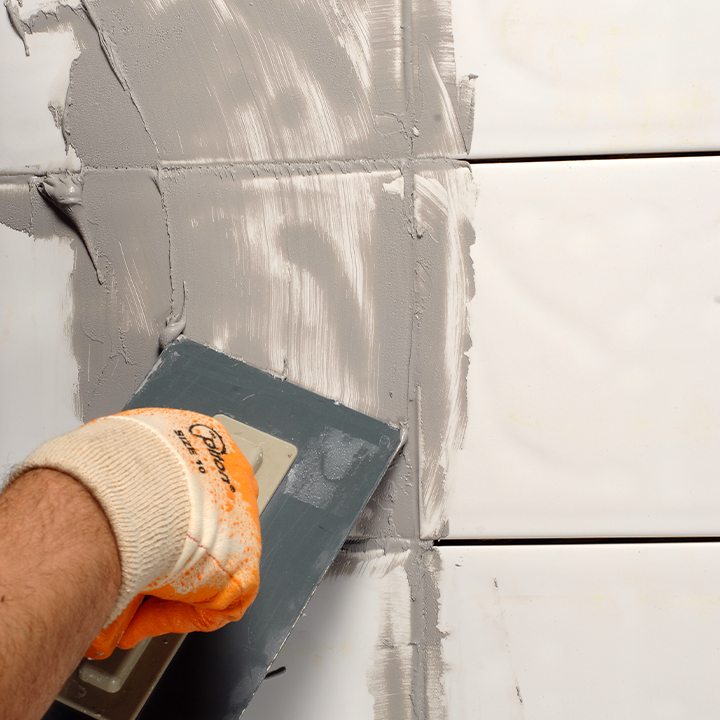

  • FUGAFIX EPOKSI® is filled to the joints with a plastic or hard rubber trowel or with a muzzle-loaded gun.
  • Excess material shall be removed from the joints.
  • In deep joints, the material applied first collapses within the joint.
  • Make sure that the joint is fully filled.
  • Depending on the ambient and surface temperature, wait for about 15 minutes, and bring the joints to their final form by cleaning the surface with a suitable sponge and hot detergent water.
  • Sponge contaminated shall be replaced frequently during cleaning.

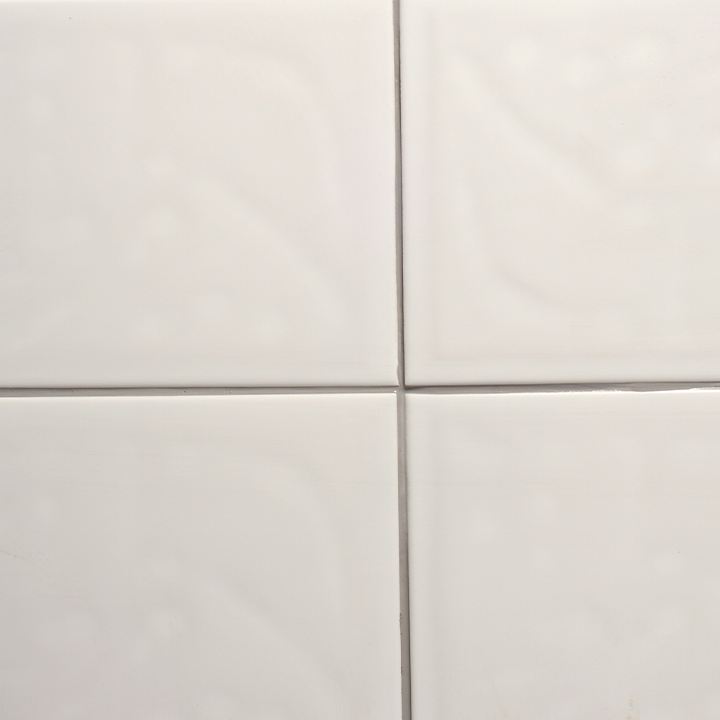

CLEANING of CERAMICS

  • Epoxy-based joint fillers create a film layer over the ceramics.
  • This layer shall be thoroughly cleaned.
  • Cleaning shall be very difficult if you are late.
  • The final film layer on the ceramics shall be cleaned using a suitable sponge and hot detergent water about 5 hours after the application and the surface shall be wiped off by adding 10% alcohol to the final cleaning water.

CONSUMPTION

Approx. 1.7 kg/m² for 1 mm of mortar thickness for fixing of ceramics.



Consumption Table for Usage of Joint Filler

Ceramic Sizes

2 mm (gr/m²)

3 mm (gr/m²)

4 mm (gr/m²)

5 mm (gr/m²)

6 mm (gr/m²)

8 mm (gr/m²)

10 mm (gr/m²)

10x10

600

900

1200

1500

1800

2400

3000

10x20

500

700

950

1150

1400

1850

2300

15x15

400

600

800

950

1150

1550

1900

15x20

350

550

700

900

1100

1400

1800

20x20

350

500

650

800

1000

1300

1650

20x25

300

450

600

750

900

1200

1500

20x30

300

400

550

700

800

1100

1400

30x30

250

350

450

550

650

900

1100



PACKAGING

5,2 kg Set,

A Companent: 5 kg tin,
B Companent: 0,2 kg Plastic bottle



STORING

1 Year Shelf Life*

* If stored in its original package without opening the package under dry, frost free conditions

CERTIFICATE OF CONFORMITY

TS EN 12004-1 / R2T and TS EN 13888 / RG Classes.
R2: Reaction resin-based adhesive enhanced with additional characteristics
T: Reduced sliding properties
RG: Joint fillers with reaction resin
Ministry of Public Works Pos. No: 04.013/2

RECOMMENDATION

  • FUGAFIX EPOKSI® shall be mixed a suitable mixing drill.
  • It shall never be mixed by hand or with a trowel.
  • Application and curing times of epoxy resin based products depend on the ambient conditions and floor temperature.
  • No other materials (water, lime, cement, gypsum, etc.) shall be added to the prepared mortar.
  • Mortar shall not be used again by mixing with water or dry mortar if its application time has expired.
  • FUGAFIX EPOKSI® may only be cleaned with mechanical methods from the surface after it is cured.
  • We recommend that the application shall be performed between +5°C and +35°C.
  • Do not inhale it directly. Cured materials shall not be brought to contact with eyes due to their irritative characteristics. In case of contact, it shall be washed with plenty of water.
  • Application areas shall be ventilated.
  • For detailed information, please request the security data sheet.
  • Contact us for your technical questions and for your questions about all other application conditions.
