  WATERPROOFING SOLUTIONS CEMENT BASED SUTOP UV®

PRODUCTS

SUTOP UV®Cement and Acryllic-Based UV Resistant Double Component Water Insulation Mortar

APPLICATION FIELD

  • Used in wet areas such as bathrooms, WCs, kitchens, balconies, etc. and for insulation of areas exposed to sunlight such as terraces, and ceilings.
  • Applied on surfaces such as concrete, plaster and screed.

REQUIREMENTS

  • Water impermeable.
  • Features perfect adhesion properties.
  • Creates a flexible coating.
  • It may be easily and rapidly applied.
  • Resistant against contraction cracks.
  • It has a white colour.
  • Resistant against UV rays.

TECHNICAL VALUES

Water Vapour Permeability

Class I

Shear Tensile Adhesive Strength

With no traffic load / Flexible

Class of Reaction To Fire

E

Adhesive Strength, N/mm²

≥ 1

Capillary Water Absorption and Water Permeability (kg/m²h0.5)

Max 0,1

Crack bridging ability, mm

>  0,75



MSDS - Safety Data Sheet Ürünün Güvenlik Bilgi Formunu görüntülemek ve indirmek için tıklayınız. TDS - Technical Information Form Ürününün Teknik Bilgi Formunu görüntülemek ve indirmek için tıklayınız.

APPLICATION

SURFACE PREPARATION

  • The surface of application shall be free solid, clean and free of dust.
  • The surface shall always be free of materials such as form oil, paint, dust etc, and shall be fully cured.
  • Parts on the surface (iron, wood, etc.) shall be removed and these hole shall be filled with appropriate Entegre Repair Mortars.
  • You may advance to application after dampening the surface.

PREPARATION of the MORTAR

  • A proper amount of fluid shall be put inside the mixing vessel (8 kg of fluid/25 kg of powder).
  • Whole bag is poured to the vessel, and stirred with hand mixer until the lumps are removed.
  • After resting for 5 minutes, the mortar shall be stirred again.
  • ENTEGRE CHAMFERING TAPE shall be applied to the connection points of the application surfaces using EPODOL®.
  • If you do not prefer chamfering tapes, bring the connection points to an oval form and reinforce them with nets.

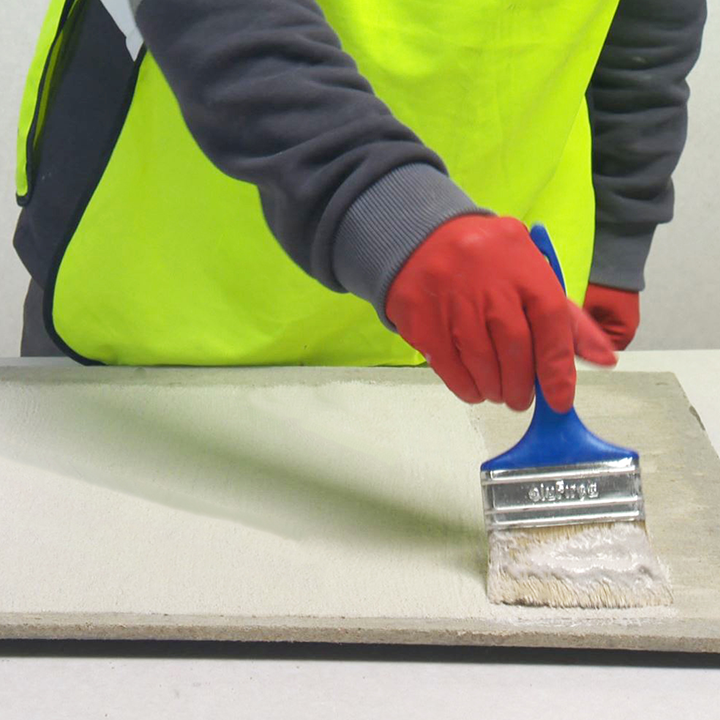

  • Fluid mortar shall be applied with a brush or a roll.
  • Second coat shall be perpendicular to the first coat and shall be applied at least for 6 hours later.
  • In case of coating, wait 3 days for application of final coat (ceramic, screed and cement-based plaster), and take care to prevent mechanical damage to the insulation material during coating.
APPLICATION VIDEO For more information, please
watch our application video. WATCH

CONSUMPTION

1.5-2.0 kg/m² for single coat

(Application at proper surface and ambient conditions is taken as a reference.
It may differ as per surface specifications and application conditions.)

PACKAGING

Component A: 25 kg’lık polyethylene-reinforced kraft paper bags,

Component B: 8 kg’lık plastic drums

(delivered in pallets or as sling-bags upon request.)

STORING

1 Year Shelf Life*

* If stored in its original package without opening the package under dry, frost free conditions



(1 week after opening the package.)

Likit bileşen 0 °C’nin altındaki sıcaklıklarda donmaktadır.)

CERTIFICATE OF CONFORMITY

TS EN 1504-2 / April 2008
It is suitable for contact with drinking water as per BS6920 standard.
(ODTU-Department of Chemical Engineering Report No: 2016.03.04,039/02  Report Date: 17/03/2016)
Ministry of Public Works Pos. No: 04,477/1

RECOMMENDATION

  • No other materials than these two components (lime, cement, gypsum, etc.) shall be added.
  • We recommend you to stir the product continuously during application.
  • Mortar shall not be used again by mixing with water, fluid component or dry mortar if its application time has expired.
  • We recommend that the application shall be performed between +5°C and +35°C.
  • SUTOP UV® shall be protected against effects such as sunlight, wind, rain and frost, etc. within the first 24 hours after application.
  • Reaches its final strength within 14 days.
  • It shall not be applied on frozen surfaces.
  • Do not apply under direct sunlight.
  • Do not go beyond the application field and the rules.
  • Do not inhale it directly. Wash your eyes with plenty of water in case of contact with eyes, seek medical attention if required.
  • For detailed information, please request the security data sheet.
  • Contact us for your technical questions and for your questions about all other application conditions.
