  THERMAL INSULATION SOLUTIONS ORANGE PACKAGE SYSTEM TURUNCU PAKET® ADHESIVE MORTAR

PRODUCTS

TURUNCU PAKET® ADHESIVE MORTARTermal Insulation Adhesive Mortar

APPLICATION FIELD

Used for affixing polystyrene and STONEWOOL plates on surfaces such as rough and fine plaster, concrete, brick, etc

REQUIREMENTS

  • Ideal for affixing XPS, EPS and STONEWOOL.
  • Provides a high adhesion performance thanks to the polymer additives.

TECHNICAL VALUES

Dry Bulk Density, kg/m³

≥ 1000

Adhesive Strength, N/mm²

≥ 0,1

Average Compressive Strength, N/mm²

> 6

Average Bending Strength, N/mm²

> 2
Adherence Strength (Adhesion Force to the Bottom Layer), N/mm²

≥ 0,5

Adherence Strength (Adhesion Force to the Termal insulation board), N/mm²

≥ 0,08

Water Absorption, 30 minutes later, g

≤ 5

Water Absorption, 240 minutes later, g

≤ 10

Class of Reaction To Fire

A1

Grain Size Over 1 mm

Max %1,0



MSDS - Safety Data Sheet Ürünün Güvenlik Bilgi Formunu görüntülemek ve indirmek için tıklayınız. TDS - Technical Information Form Ürününün Teknik Bilgi Formunu görüntülemek ve indirmek için tıklayınız.

APPLICATION

SURFACE PREPARATION

  • The surface of application shall always be free of materials such as form oil, paint, dust etc.
  • Moving parts with low adherence shall be moved away from the surface.
  • You may advance to application after dampening the surface.

PREPARATION of the MORTAR

  • A proper amount of water shall be put inside the mixing vessel (6-6.75 l water/25 kg bag).
  • Powder material shall be added and stirred with hand mixer at low speed.
  • After resting for 5 minutes, the plaster shall be stirred until achieving a homogeneous mixture.
  • Mortar shall be applied to perimeter of the area where the termal insulation board shall be affixed with a thickness of 1 cm using a trowel.
  • A suitable amount of mortar shall be placed to the points in the central areas.

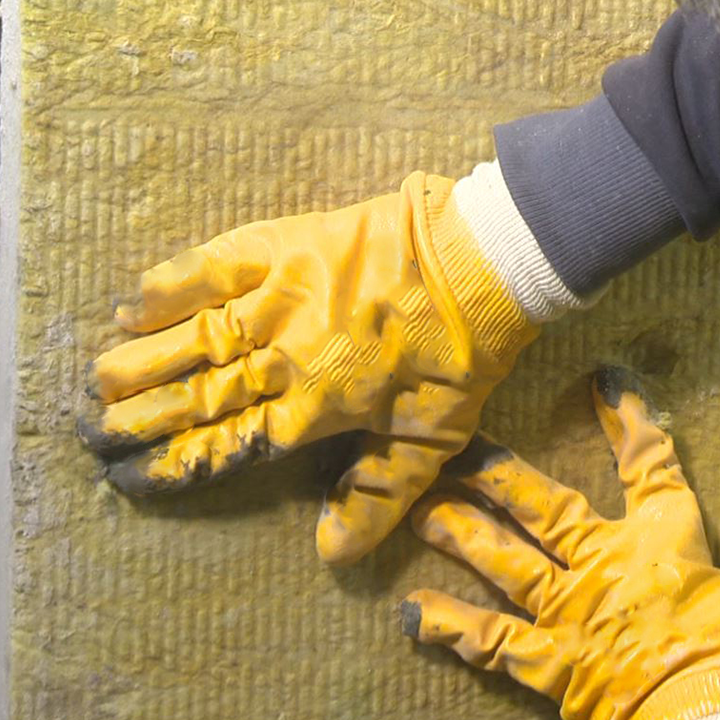

  • Plates are affixed to the floor with a suitable pressure. Mechanical plugling is performed when the mortar is cured adequately.


CONSUMPTION

4,5 kg/m²

PACKAGING

25 kg polyethylene-reinforced kraft paper bags,

(delivered in pallets or as sling-bags upon request.)

STORING

1 Year Shelf Life*

* If stored in its original package without opening the package under dry, frost free conditions



(1 week after opening the package.)

CERTIFICATE OF CONFORMITY

TS 13566 / June 2013
Ministry of Public Works Pos. No: 04,480

RECOMMENDATION

  • No other materials (lime, cement, gypsum, etc.) shall be added to the prepared mortar.
  • Mortar shall not be used again by mixing with water or dry mortar if its application time has expired.
  • We recommend that the application shall be performed between +5°C and +35°C.
  • TURUNCU PAKET® ADHESIVE MORTAR shall be protected against quick drying under windy weather conditions.
  • It shall not be applied on frozen surfaces.
  • Do not apply under direct sunlight.
  • Do not go beyond the application field and the rules.
  • Do not inhale it directly. Wash your eyes with plenty of water in case of contact with eyes, seek medical attention if required.
  • For detailed information, please request the security data sheet.
  • Contact us for your technical questions and for your questions about all other application conditions.
