GAZBETONFiX®Cement-Based Aerated Concrete Masonry Mortar

APPLICATION FIELD

Used for constructing walls with autoclaved aerated concrete (AAC) blocks.

REQUIREMENTS

·       Provides high performance due to its high adhesion.

·       Provides ease of application with sufficient working and open time.

TECHNICAL VALUES



Density, kg/m³

1400 ± 200

Workability Time, min

≥ 120

Adjustment Time, min

≥ 5

Compressive Strength, N/mm²

≥ 10,0 (M 10)

Maximum Particle Size, mm

≤ 2

Water Absorption, kg/m².min⁰,⁵

≤ 2,5

Water Vapour Permeability Coefficient (µ)

5/20

Reaction to Fire

A1



MSDS - Safety Data Sheet Ürünün Güvenlik Bilgi Formunu görüntülemek ve indirmek için tıklayınız. TDS - Technical Information Form Ürününün Teknik Bilgi Formunu görüntülemek ve indirmek için tıklayınız.

APPLICATION

  • GAZBETONFIX® shall be mixed by hand or preferably with power mixer (8-8.5 l water/25 kg bag).
  • While preparing the mortar:
    • Water shall be put to the plastic vessel first, then GAZBETONFIX® shall be added and mixed.
    • Stop for 5 minutes, and stir again to achieve a homogeneous mixture.

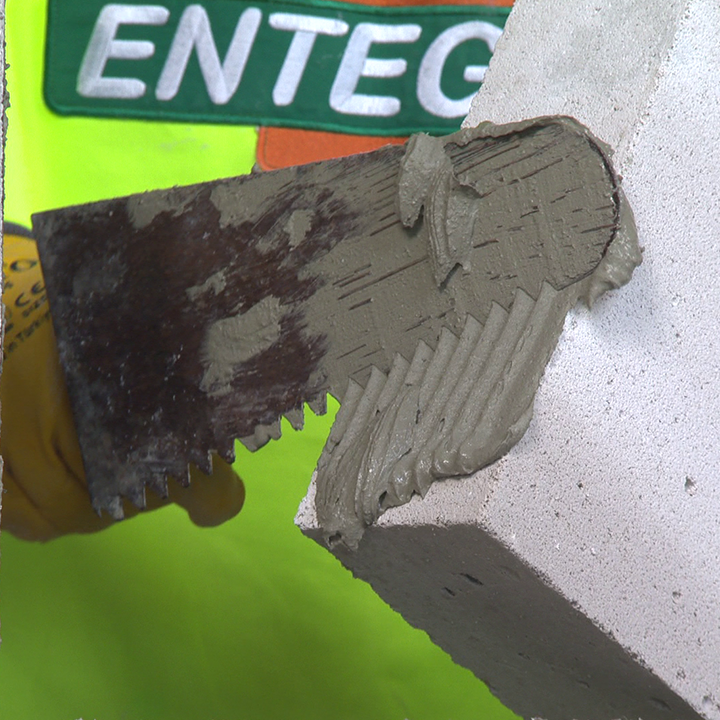

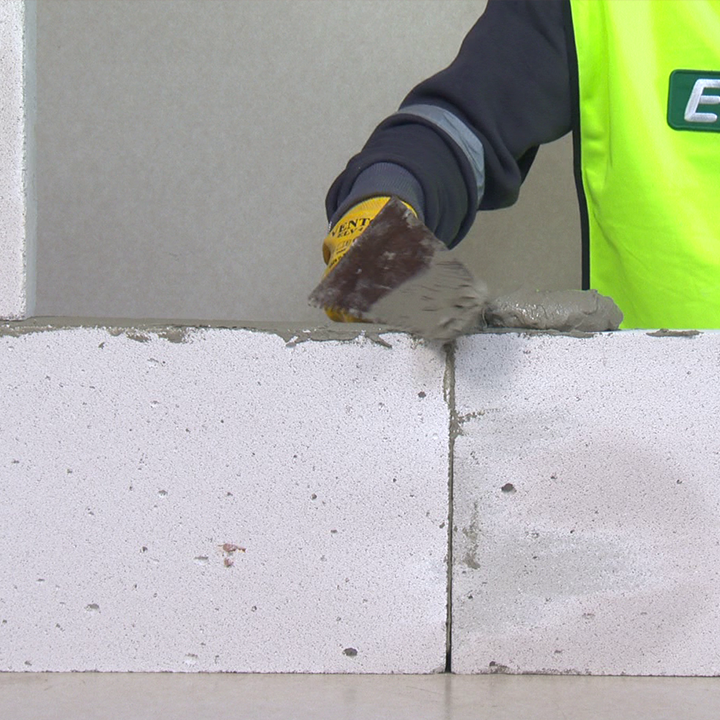

  • The mortar prepared shall be applied to the vertical and horizontal surfaces with a comb.
  • Ensure that joint thickness is at least 3 mm.
  • Aerated concrete block placed shall be seated by hammering from the top and side.
APPLICATION VIDEO For more information, please
watch our application video. WATCH

CONSUMPTION

2-3 kg/m² (Consumption when the mortar is applied at 3 mm thickness over a 1 m² surface. Consumption according to wall area should be calculated considering block dimensions. Refer to the “Masonry Mortar Consumption Calculation” at the back of the catalogue.)



PACKAGING

·       Supplied on pallets in 25 kg kraft bags.

STORING

·       When stored unopened in its original packaging in a dry, frost-free environment, stacked no more than 8 bags high and without direct contact with the ground, the shelf life is 1 year from the date of manufacture. Once opened, the bag should be consumed within 1 week.

CERTIFICATE OF CONFORMITY

TS EN 998-2 / January 2017

Type T (Thin-Layer Masonry Mortar)

Public Works Item No: 10.130.2499



RECOMMENDATION

  • ·       Lay the first course level using cement-based mortar.

    ·       Do not add any foreign material (lime, cement, gypsum, etc.) to the prepared mortar.

    ·       Application is recommended at temperatures between +5 °C and +35 °C. Drying time may increase or decrease under different weather conditions.

    ·       Do not use outside the specified areas of application or contrary to the application instructions.

    ·       As this is a cement-based material, do not inhale directly. In case of contact with eyes, rinse thoroughly with plenty of water and seek medical advice if necessary.

    ·       Request the product Safety Data Sheet for further information.

    ·       Please consult us regarding all other application conditions and technical questions.
