  TECHNICAL MORTARS REPAIR and ANCHORAGE MORTAR SELFFiX®

PRODUCTS

SELFFiX®Cement-Based Grout Mortar

APPLICATION FIELD

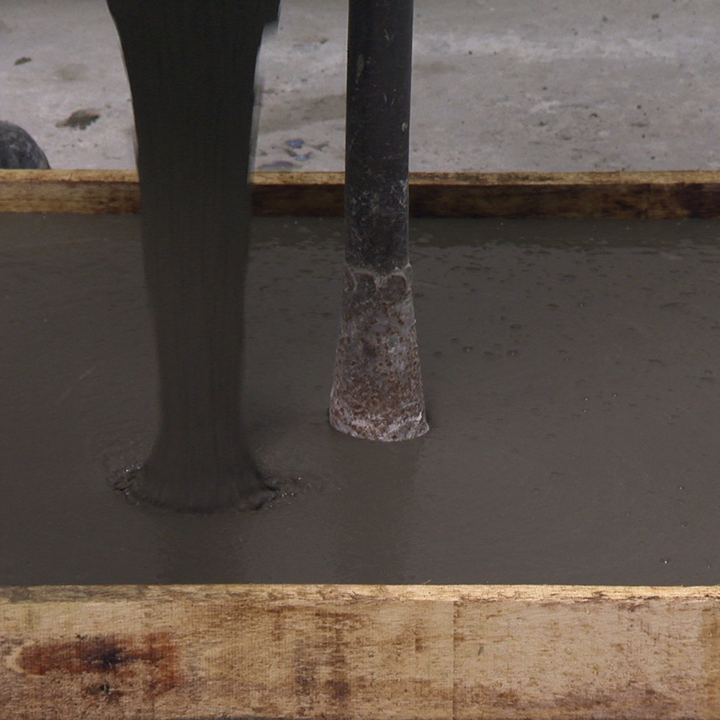

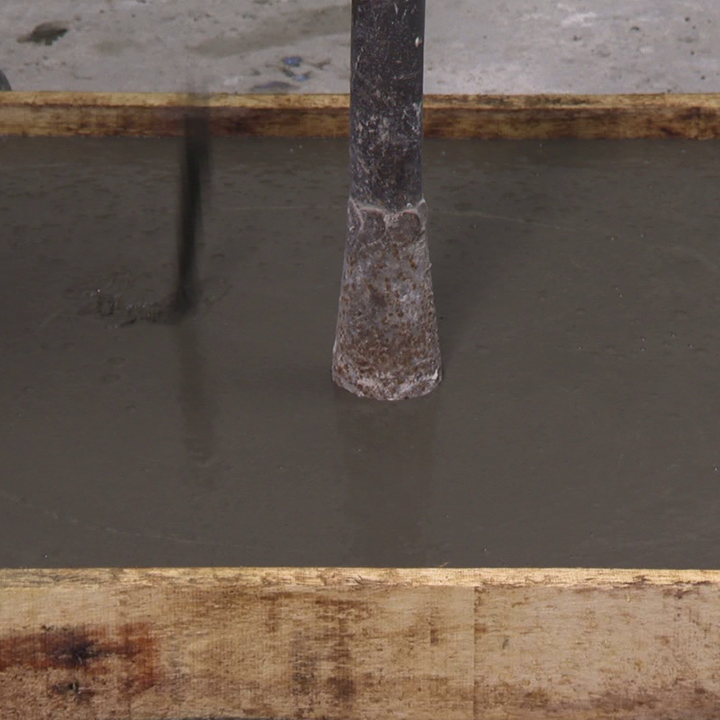

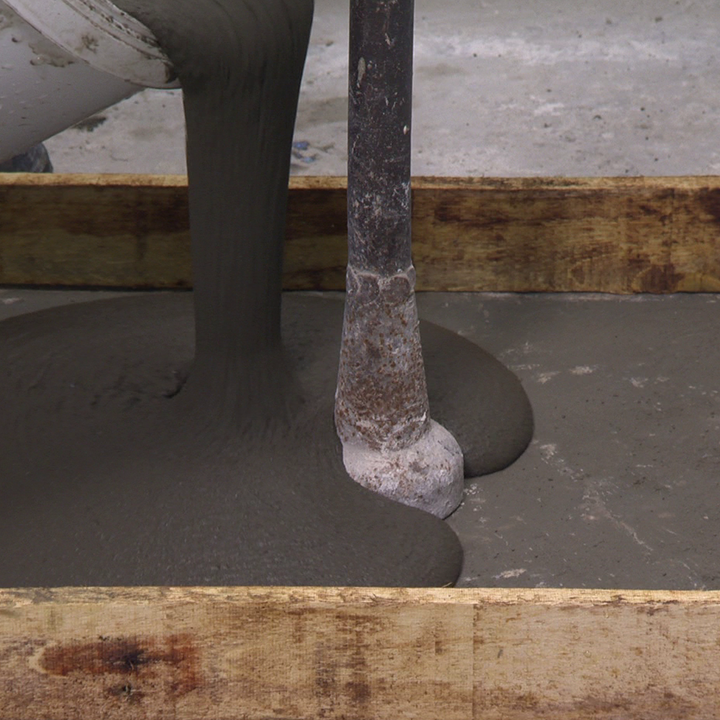

It is used on cracked and worn concrete surfaces where manual operation is not possible, on broken concretes, for fixing of steel columns to the foundation, for the installation of prefabricated concrete structural elements, for securing all kinds of industrial machinery to the ground and for filling of holes and cavities.

REQUIREMENTS

·       Provides high bond and compressive strength.

·       Does not crack or shrink.

·       Resistant to freeze-thaw cycles.

·       Suitable for interior and exterior applications.

·       Provides fast and excellent results.

·       Its flowability enables application in areas where manual work is not possible.

·       Does not segregate or bleed.



·       Application thickness is 3-5 cm.

TECHNICAL VALUES

Class

R4

Mortar Type

PCC

Bond Strength, N/mm²

≥ 2

Compressive Strength, N/mm²

≥ 45

Chloride Content, %

≤ 0.05

Restrained Shrinkage/Expansion, N/mm²

≥ 2

Reaction to Fire

A1



MSDS - Safety Data Sheet Ürünün Güvenlik Bilgi Formunu görüntülemek ve indirmek için tıklayınız. TDS - Technical Information Form Ürününün Teknik Bilgi Formunu görüntülemek ve indirmek için tıklayınız.

APPLICATION

SURFACE PREPARATION

  • The surface of application shall be free of residues that may prevent adhesion.
  • Moving parts with low adherence shall be moved away from the surface.
  • Corrosion on metal parts shall be removed and contact with mortar shall be prevented using an anti-corrosion agent.
  • Absorbent surfaces shall be saturated with water.
  • Ensure that the mould where the application shall be performed is well cleaned and water-proof, and fix the mould securely.
  • Water collected on the surface shall be moved away before application.

PREPARATION of the MORTAR

  • Add powder material to the mixture water put inside a clean mixing vessel (3.5-4,0 lt water/ 25 kg powder), and mix using a hand mixer with low speed at this time.
  • Mix 3-4 minutes more until a homogeneous mixture is achieved after adding all powder.
  • It shall be used in 15-20 as it sets quickly.
  • The mortar prepared shall be applied with an injection pump or by self dissipation depending on the application.
  • Times specified may differ as per ambient temperature and surface temperature, and the times are reduced at lower temperatures and increased in higher temperatures.

CONSUMPTION

Powder consumption per 1 mm: 1,9 kg/m².

PACKAGING

·       Supplied on pallets in 25 kg kraft bags.

STORING

·       When stored unopened in its original packaging in a dry, frost-free environment, stacked no more than 8 bags high and without direct contact with the ground, the shelf life is 6 months from the date of manufacture. Once opened, the bag should be consumed within 1 week. Keep the packaging tightly closed when the product is not in use.

CERTIFICATE OF CONFORMITY

TS EN 1504-3 / Apr/l 2008 / Class R4 Publ/c Works Item No: 10.300.2073



RECOMMENDATION

  • No other materials (lime, cement, gypsum, etc.) shall be added to the prepared mortar.
  • Plaster shall not be used again by mixing with water or dry plaster if its application time has expired.
  • Ensure that no air is left in the mortar prepared. Otherwise, air bubbles may reduce the adhesive resistance of the product.
  • We recommend that the application shall be performed between +5°C and +35°C.
  • Surface shall be protected against sunlight, wind, rain or frost for the first 24 hours on exterior applications.
  • It shall not be applied on frozen surfaces.
  • Do not apply under direct sunlight.
  • Do not go beyond the application field and the rules.
  • Do not inhale it directly. Wash your eyes with plenty of water in case of contact with eyes, seek medical attention if required.
  • For detailed information, please request the safety data sheet.
  • Contact us for your technical questions and for your questions about all other application conditions.
