  WATERPROOFING SOLUTIONS BITUMEN BASED SUTOP® EBT-1B

PRODUCTS

SUTOP® EBT-1BPolymer-Bitumen Modified Single Component Water Insulation Material

APPLICATION FIELD

It may be used from the incoming direction of water on horizontal applications on interior and exterior surfaces,on balconies and terraces, ceilings, retaining walls, for water insulation of foundation curtains and vents, as water and humidity barrier on surfaces of interior and exterior walls that contact with the soil, and for affixing of heat insulation plates

REQUIREMENTS

  • Has a single component.
  • Based on polymer-bitumen modification.
  • Features crack bridging.
  • Does not contain solvents, it is environment-friendly.
  • Ready to use and easy to apply on the surface.
  • Resistant against freezing-thawing cycles.
  • It may be applied by brush or spraying machine.

TECHNICAL VALUES

Colour

Brown, Black

Density

1.21 ± 0.01 kg/lt

pH

11,5-12,5

Viscosity

70 d.Pa.s

Solid Content

71.0 % ± 1.0 %

Temperature of Application Floor

+5 °C  /  +30  °C

First Curing Period

5 Hours

Full Curing Period

1 – 5 days

Crack bridging, mm

2

Elongation

> 450



MSDS - Safety Data Sheet Ürünün Güvenlik Bilgi Formunu görüntülemek ve indirmek için tıklayınız. TDS - Technical Information Form Ürününün Teknik Bilgi Formunu görüntülemek ve indirmek için tıklayınız.

APPLICATION

SURFACE PREPARATION

  • The surface of application shall be free solid, clean, free of dust and level.
  • The surface shall always be free of materials such as form oil, paint, dust etc., and shall be fully cured.
  • Any cracks and holes on the surface shall be filled before application using DOLTEK® or DOLFIN®.

PREPARATION of the MORTAR

  • SUTOP® EBT-PRIMER shall be applied to the surface before application to provide better adhesion. It shall be applied after waiting for its drying.
  • For the application of primer, take 1 kg of SUTOP® EBT-1B and add 5 litres of water. It shall be mixed with a 400-600 rpm mixer until a homogeneous mixture is achieved (about 3-5 minutes).

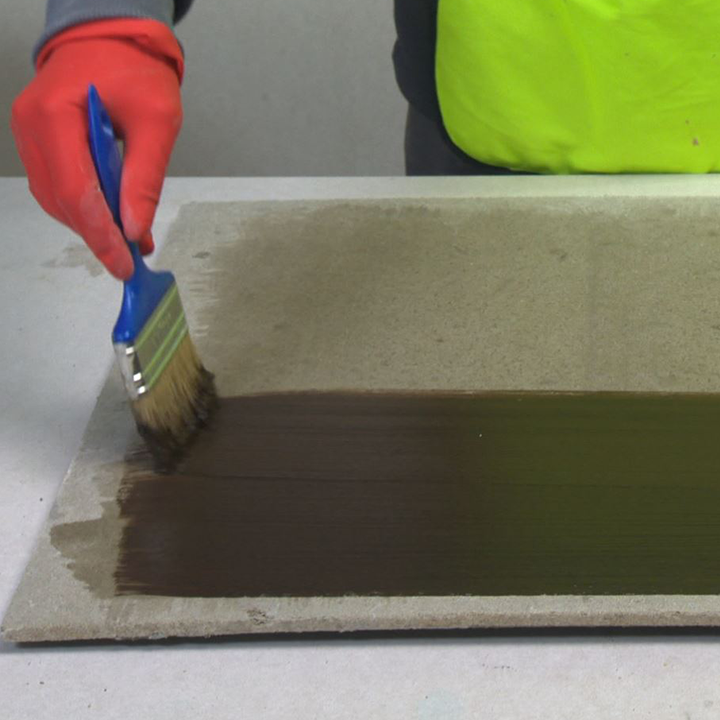

  • The material shall be distributed evenly and applied with brush, roll or suitable spraying machine without allowing the formation of a puddle on horizontal surfaces. A net may be used as a carrier against critical and heavy load pressures, if required.
  • If you want cover SUTOP® EBT-1B with any protective layer, then silica sand shall be scattered over the final coat before the surface is dried. Sands are cleaned by sweeping when the surface has dried, and then it shall be possible to apply coatings such as screed, plaster, gypsum on the cleaned surface.
  • Foundation pit shall not be filled until the coating has been dried satisfactorily. Before filling the foundation pit, SUTOP® EBT-1B shall be protected from the impacts during filling using appropriate drainage plates and heat insulation boards.


CONSUMPTION

Approx. 4.5 kg/per m² dry film thickness of 3 mm

(May vary as per surface specifications and application conditions.)

PACKAGING

15 kg plastic buckets

STORING

1 Year Shelf Life*

* If stored in its original package without opening the package under dry, frost free conditions

CERTIFICATE OF CONFORMITY

Complies with TS EN 15814 standard.

RECOMMENDATION

  • It shall be protected against water, frost and extreme weather conditions.
  • Broken or opened packages shall be closed immediately and consumed as soon as possible.
  • Application and reaction times of bitumen rubber based systems are affected by ambient and ground temperature and relative humidity in the air. At low temperatures, the reaction slows down and the application time increases. At high temperatures, the reaction accelerates and the application time is reduced.
  • To ensure that the material is cured, the ambient and ground temperatures shall not fall below the minimum permissible temperature.
  • Areas that are not cured completely shall not be exposed to water.
  • Never apply in wet weather and on wet floors.
  • It shall not be applied on frozen surfaces.
  • Do not apply under direct sunlight.
  • Do not go beyond the application field and the rules.
  • Do not inhale it directly. Wash your eyes with plenty of water in case of contact with eyes, seek medical attention if required.
  • If you want to cover the surface of the bituminous layer with any coating such as ceramic, tiles, etc., it is recommended to protect the bituminous surface with protective layers before advancing to the application. Contact our technical department to get information on this subject.
  • For detailed information, please request the security data sheet.
  • Contact us for your technical questions and for your questions about all other application conditions.
