  TECHNICAL MORTARS MASONRY MORTAR DUVAREL®

PRODUCTS

DUVAREL®Cement-Based Wall Mortar

Masonry Mortar That Provides Savings from Time and Labour

APPLICATION FIELD

Used for masonry with bricks, briquette and pumice concrete.

REQUIREMENTS

  • Ready to use.
  • Saves time and labour with respect to the conventional mortar.
  • Provides convenient application thanks to its adequate application time.

TECHNICAL VALUES

Dry Bulk Density of Hardened Mortar, kg/m³

1800 ± 200

Dry Bulk Density, g/cm³

Ort 1,5

Processing Time, min.

≥ 100

Smoothing Time, min.

Min 4

Compressive Strength, N/mm²

≥ 5 (M5)

Greatest grain size of the aggregate, mm

≤ 2

Capillary Water Absorption, kg/m².min0.5

≤ 2,5

Water Vapour Permeability Coefficient (µ)

15/35

Reaction to Fire

A1



MSDS - Safety Data Sheet Ürünün Güvenlik Bilgi Formunu görüntülemek ve indirmek için tıklayınız. TDS - Technical Information Form Ürününün Teknik Bilgi Formunu görüntülemek ve indirmek için tıklayınız.

APPLICATION

  • DUVAREL® shall be mixed by hand (8.5-9.5 l water / 50 kg bag; 4-5 l water / 25 kg bag).
  • While preparing the mortar:
    • Water shall be put to the plastic vessel first, then DUVAREL® shall be added and mixed.
    • Stop for 5 minutes, and stir again to achieve a homogeneous mixture.

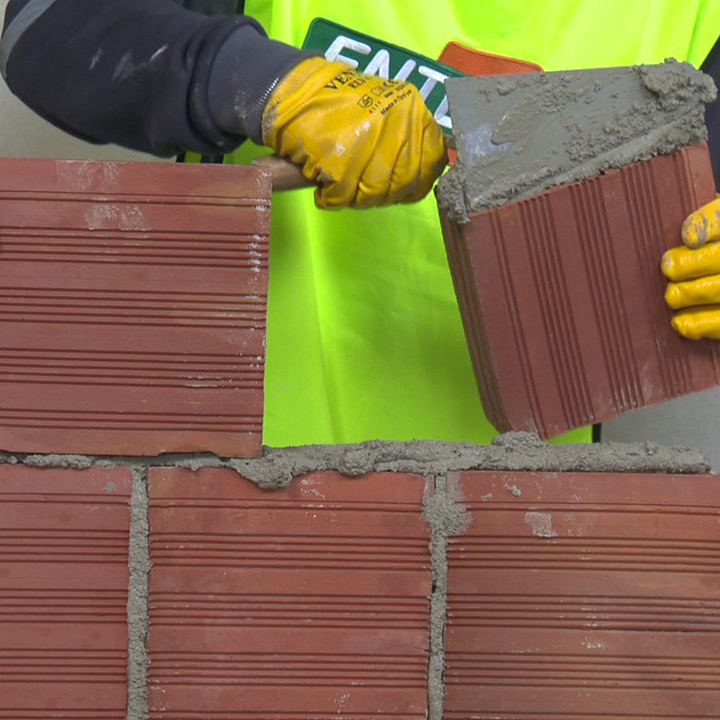

  • The mortar prepared shall be applied to the vertical and horizontal surfaces with a trowel.

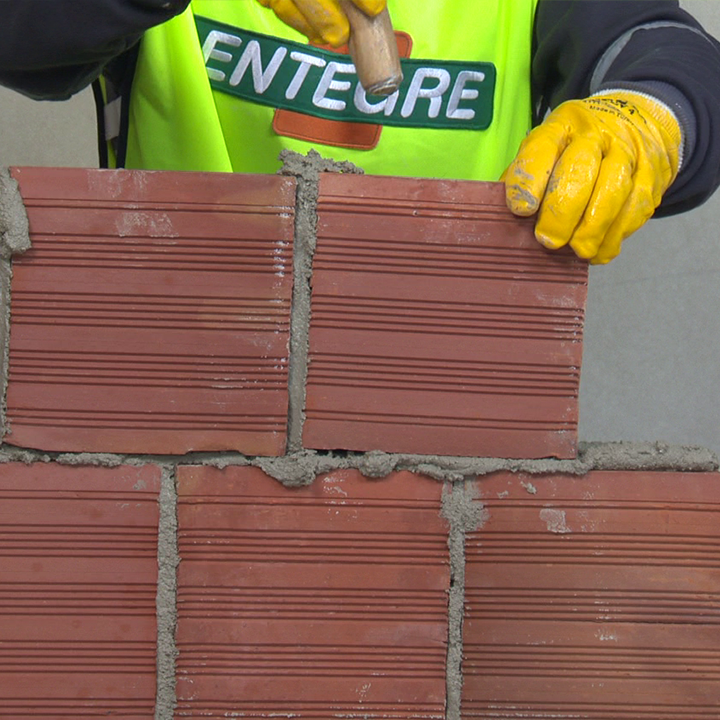

  • Masonry materials placed shall be seated by hammering from the top and side.
  • During the masonry works, masonry materials of the columns and curtains shall be joined using DUVAREL®.
APPLICATION VIDEO For more information, please
watch our application video. WATCH

CONSUMPTION

Consumption of bricks that are used frequently are specified as follows considering a thickness of 1 cm.



Width (mm)

Length (mm)
Height
(mm)

Consumption

(kg/m2)

Brick

85

190

190

13

Brick

135

190

190

20

Insulation Bricks

145

240

235

17

Concrete Brick

190

240

235

22

Pumice Concrete Brick

190

390

195

20

Pumice Concrete Brick

150

390

185

17

Pumice Concrete Brick

190

390

185

21



PACKAGING

25 kg and 50 kg Paper Bag,

(delivered in pallets or as sling-bags upon request.)

STORING

1 Year Shelf Life*

* If stored in its original package without opening the package under dry, frost free conditions



(1 week after opening the package.)

CERTIFICATE OF CONFORMITY

TS EN 998-2 / January 2017
T Type (Cement-based Ready-Mixed Wall Mortar)
Ministry of Public Works Pos. No: 04,478

RECOMMENDATION

  • Surfaces of masonry materials shall be clean.
  • No other materials (lime, cement, gypsum, etc.) shall be added to the prepared mortar.
  • We recommend that the application shall be performed between +5°C and +35°C.
  • Do not go beyond the application field and the rules.
  • Do not inhale it directly as it is a cement-based material.
  • For detailed information, please request the safety data sheet.
  • Contact us for your technical questions and for your questions about all other application conditions.
