SUTOP® SBModified Thermoplastic Elastomer Based Tape Expanding With Water

APPLICATION FIELD

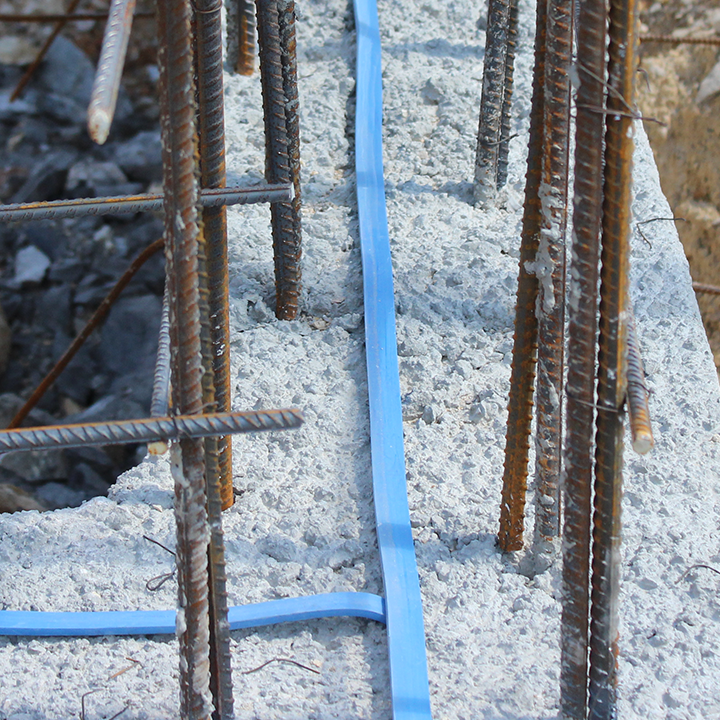

It is used for insulation of concrete joints, connection points of foundations and curtains and prefabricated element joints, pipes and metalwork passages and cassettes.

REQUIREMENTS

  • In case of contact with water, it swells and blocks the flow of water.
  • Fills cracks, capillary holes and pores on the concrete. Renders concrete joints water-proof.
  • It is easy to use.
  • May be used on horizontal and vertical applications.
  • Has dimensional consistency even at high temperatures.
  • Suitable for use both on fresh water and salt water environments.

TECHNICAL VALUES

Chemical Properties of the Material

Modified Thermoplastic Elastomer

Colour

Blue

Dimensions

5x20 mm | 40 m/roll

Density

~ 1,25 g/cm3

Inflation Capacity

In terms of Mass

In terms of Size
After 2 hours; 50 %

After 24 hours; 150 %

After 8 days; 690 %
Start; 5 x 20 x 150 mm

After 2 hours; 7 x 24 x 160 mm

After 24 hours; 9 x 34 x 225 mm

After 8 days; 10 x 44 x 278 mm

Expansion Pressure

~ 1,06 N/mm2

Strength Against Water Pressure
2,0 bar for a joint of 0.25 mm
1,5 bar for a joint of 1.00 mm

Fire Class

E



MSDS - Safety Data Sheet Ürünün Güvenlik Bilgi Formunu görüntülemek ve indirmek için tıklayınız. TDS - Technical Information Form Ürününün Teknik Bilgi Formunu görüntülemek ve indirmek için tıklayınız.

APPLICATION

SURFACE PREPARATION

  • The surface of application shall always be free of materials that prevent adhesion such as dust, form oil, paint, curing agent, etc.
  • Surface may be lightly wet during application, but there shall be no puddles.

Application

  • The place where the swollen band shall be applied shall be within the 8 cm part of the concrete.
  • The expansion strip shall be fixed with a mounting adhesive suitable for the water retainers.
  • The bottom surface prepared by the mounting adhesive shall be completely covered and the expansion strip shall be pressed into the adhesive until it penetrates underneath.
  • You shall start to cast the concrete at least 8 hours after the fixing operation.
  • Instead of this operation, you may also fix the expansion strip with steel nails (min. 5 nails per metre).
  • Avoid rotation and formation of holes, and ensure that the expansion strip is in full contact with the material under it.
  • It may be installed by overlapping the splices of water retaining tape every 50 mm.

CERTIFICATE OF CONFORMITY

RECOMMENDATION

  • Expansion tape shall be stored in a dry environment.
  • Make sure that the expansion tape is at the same level with the concrete, and that it is clean under the tape.
  • Visually inspect the product to make sure that the expansion tape is not exposed to humidity before the application of the concrete.
  • Extremely swollen expansion tapes are not suitable for use.
  • Expansion tapes are not suitable for moving connection points.
